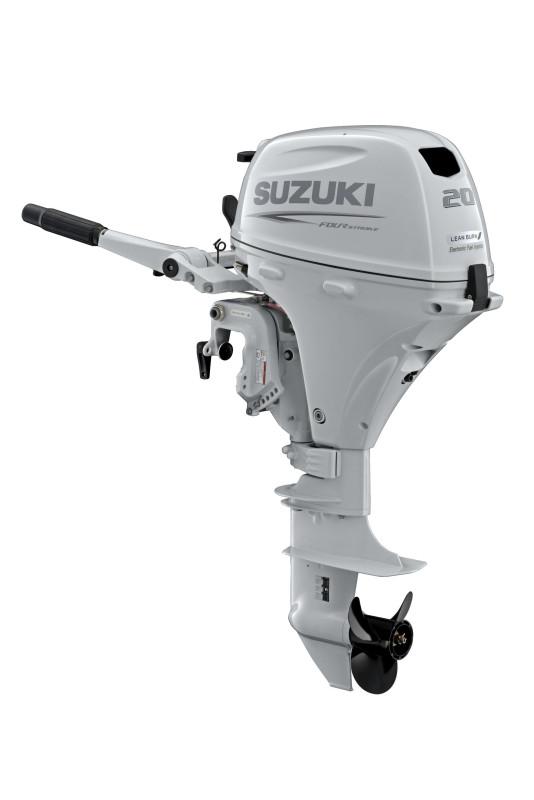

Suzuki DF20hp Outboard

Engine Specifications

• Engine Type: In-line 2-cylinder, 4-stroke, OHC
• Displacement: 327 cm³
• Bore x Stroke: 60.4 mm x 57 mm
• Maximum Output: 14.7 kW (20 PS)
• Full Throttle Operating Range: 5,300 – 6,300 rpm
• Fuel Delivery System: Battery-less Electronic Fuel Injection (EFI)
• Ignition System: Digital CDI
• Alternator Output: 12V 12A (electric start models)

---

⚙️ Physical Dimensions & Weight

• Transom Heights:
  • Short Shaft (S): 381 mm (15″)
• Weight:
  • Manual Start:
    • Short Shaft: 44 kg
    • Long Shaft: 45 kg
  • Electric Start:
    • Short Shaft: 48 kg
    • Long Shaft: 49 kg

---

⚙️ Performance & Features

• Gear Ratio: 2.08:1
• Gear Shift: Forward-Neutral-Reverse
• Trim Method: Manual Trim and Tilt
• Exhaust System: Through Prop Hub Exhaust
• Oil Pan Capacity: 1.0 L
• Fuel Tank Capacity: Optional 12 L portable tank
• Propeller Selection: 3-blade, 7″ to 12″ pitch

SPECIFICATIONS

Recommended transom height:	508mm (20in)
Weight:	45.0kg
Bore x Stroke:	60.4 x 57mm
Propeller Selection (pitch):	7″-12″
Starting System:	Manual
Engine Type:	4-Stroke OHC
Fuel Delivery System:	Battery-less Electronic Fuel Injection
No. of Cylinders:	2
Piston Displacement:	327cc
Maximum Output:	14.7KW
Full Throttle Operating Range:	5,300 – 6,300
Steering:	Tiller or Remore
Oil Pan Capacity:	1.0L
Ignition System:	Digital CDI
Alternator:	12V 6A or 12V 12A
Engine Mounting:	Shear Mount
Trim Method:	Manual or Power
Gear Ratio:	2.08:1
Gear Shift:	F-N-R
Exhaust:	Through Prop Hub Exhaust
Fuel Tank Capacity:	12L
